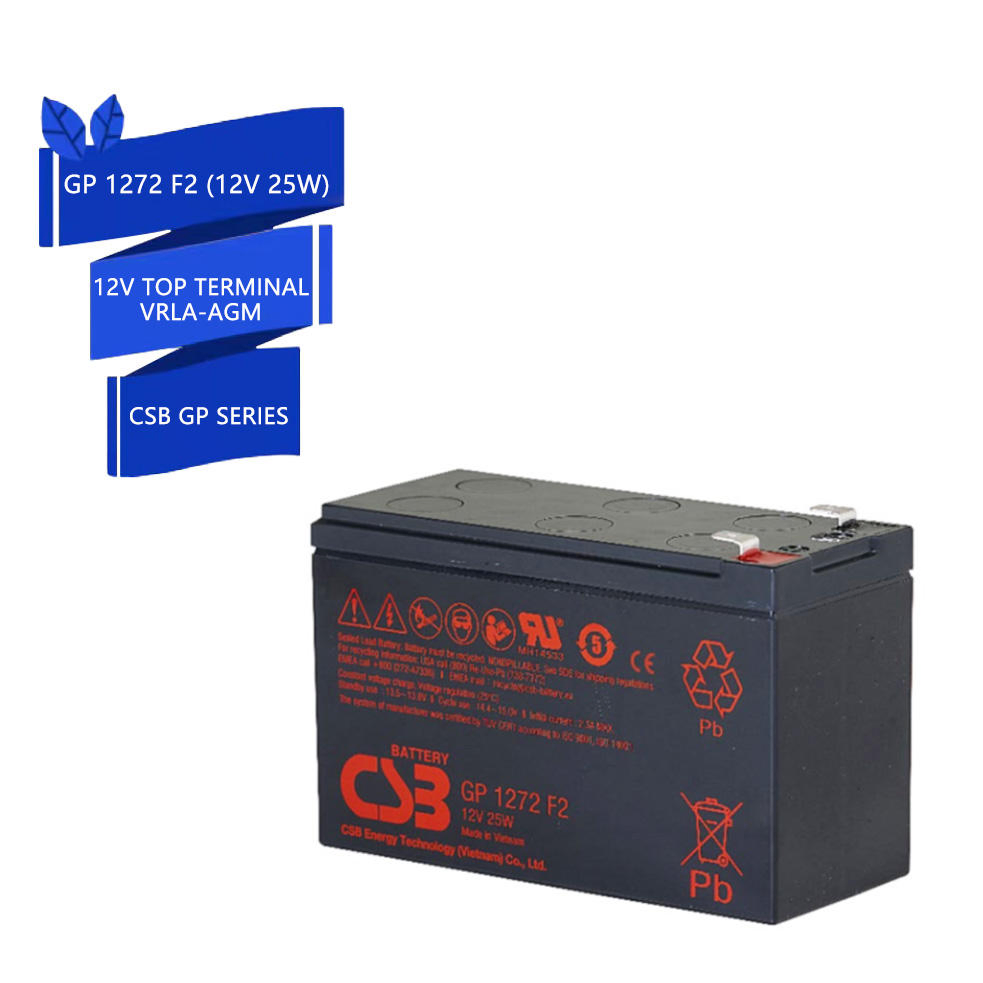

Csb Gp1272 F2 12V 25W High Performance Maintenance-Free Valve Regulated Lead Acid Battery

1 / 5

Csb Gp1272 F2 12V 25W High Performance Maintenance-Free Valve Regulated Lead Acid Battery

Customization:	Available
Type:	Lead-Acid Batteries
Usage:	UPS, Electric Power

Send Inquiry

Product Description

ℹ Basic Info

Model NO.

CSBGP1272 F2 12V25W

Nominal Voltage

12V

Discharge Rate

Medium Discharge Rate

Shape

Square Battery

Electrolyte

Acid

Rechargeable

Yes

Cycle Life

3-5 Years

Battery Type

VRLA

Application

Uninterruptible Power Supplies, UPS

Weight

1.84kg

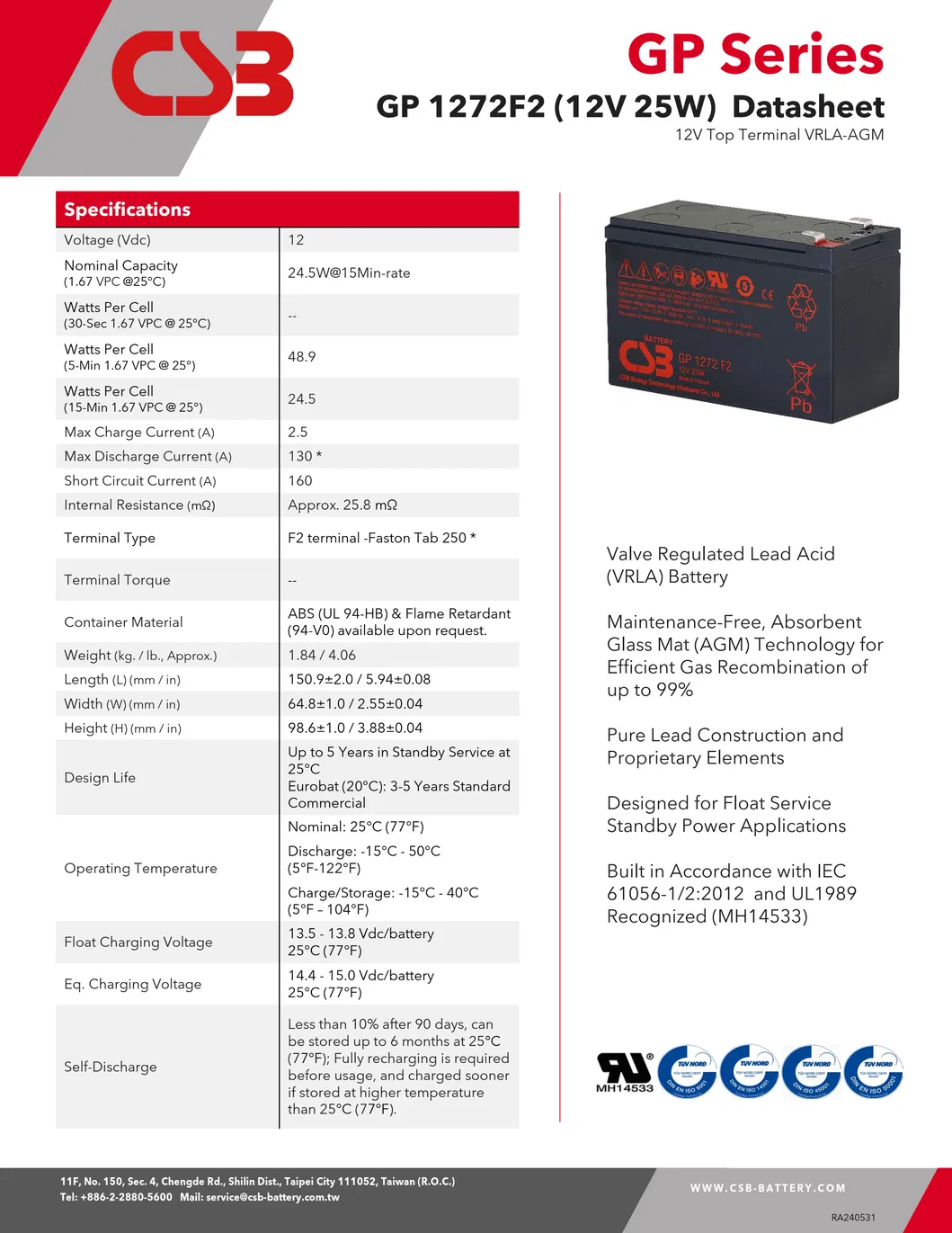

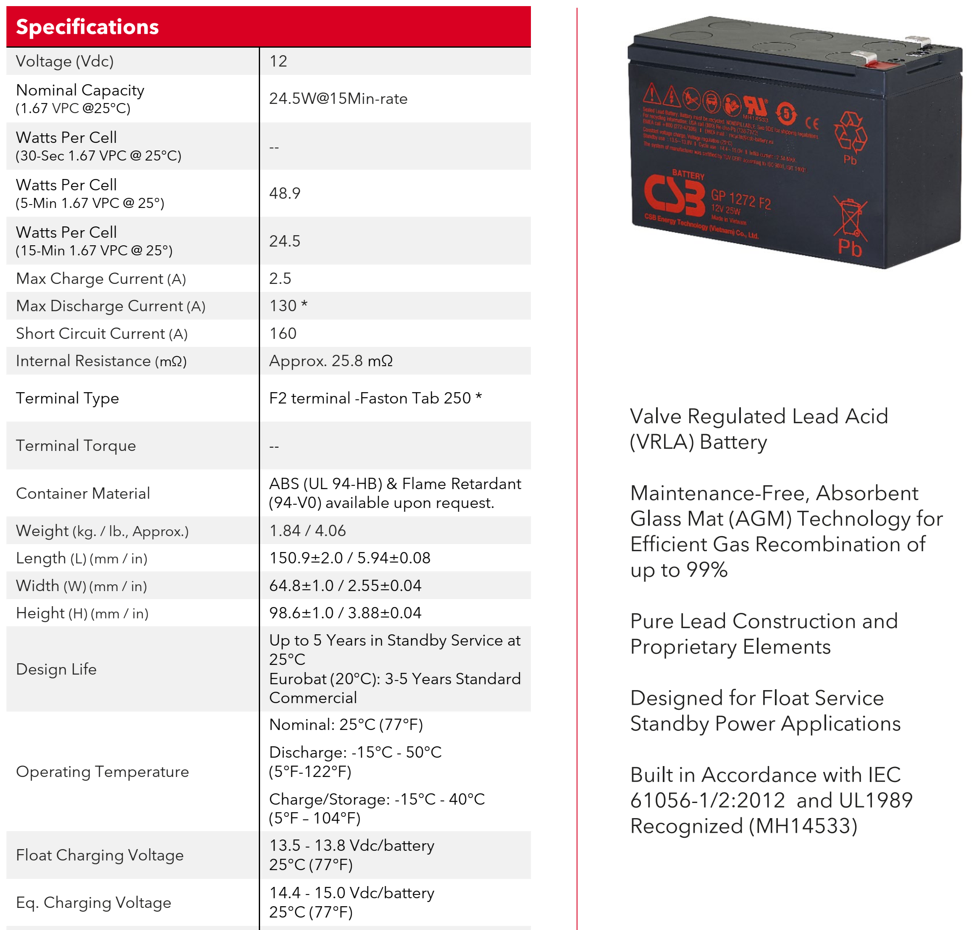

📋 Specification

Model Number	CSB GP1272 F2 12V 25W
Electric Energy	25Wh
Nominal Capacity	24.5W@15Min-rate
Internal Resistance	Approx. 25.8 mΩ
Short Circuit Current	160 A
Charging Ratio	2.5A
Discharge Rate	130A
Storage Type	Nominal 25°C (77°F)

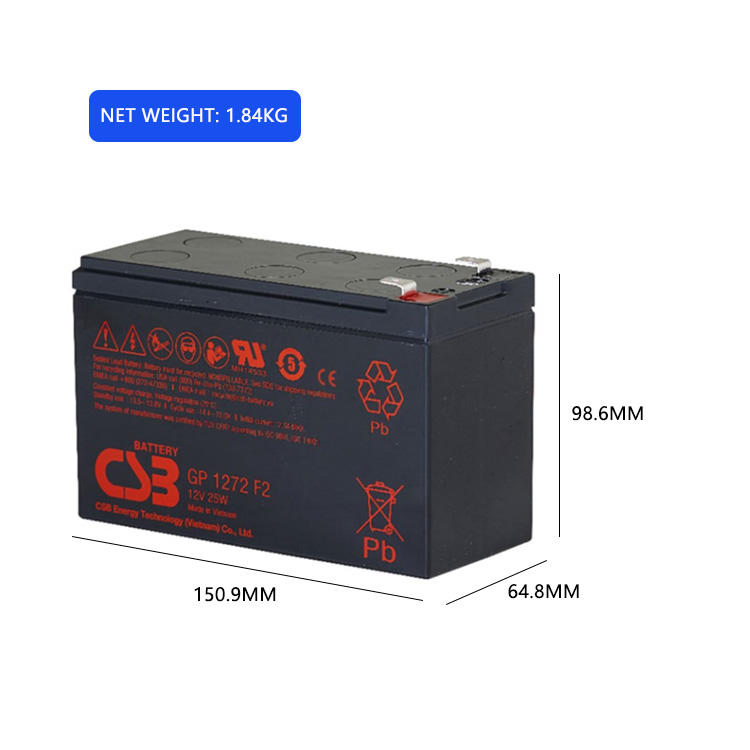

Dimensions (LWH)	150.9 x 64.8 x 98.6 mm
HS Code	85072020

📦 Product Description

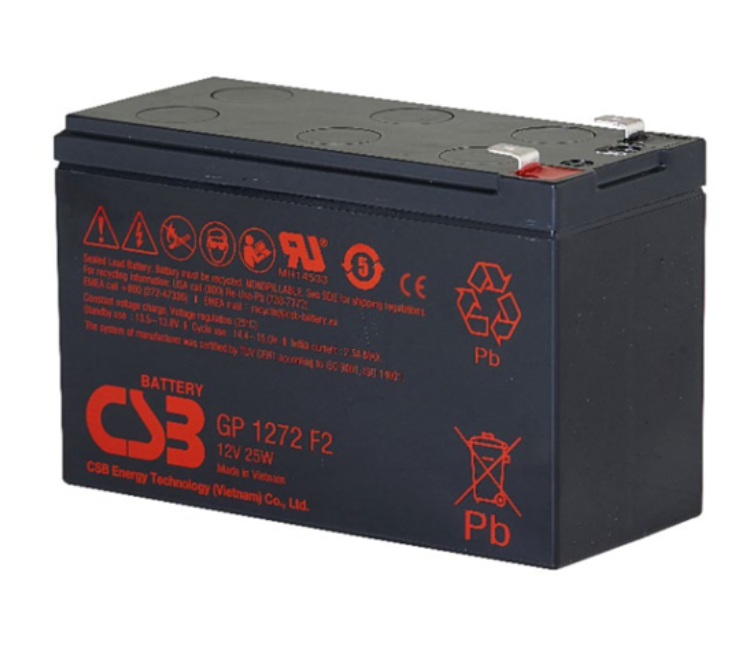

Maintenance-Free Valve Regulated Lead Acid Battery

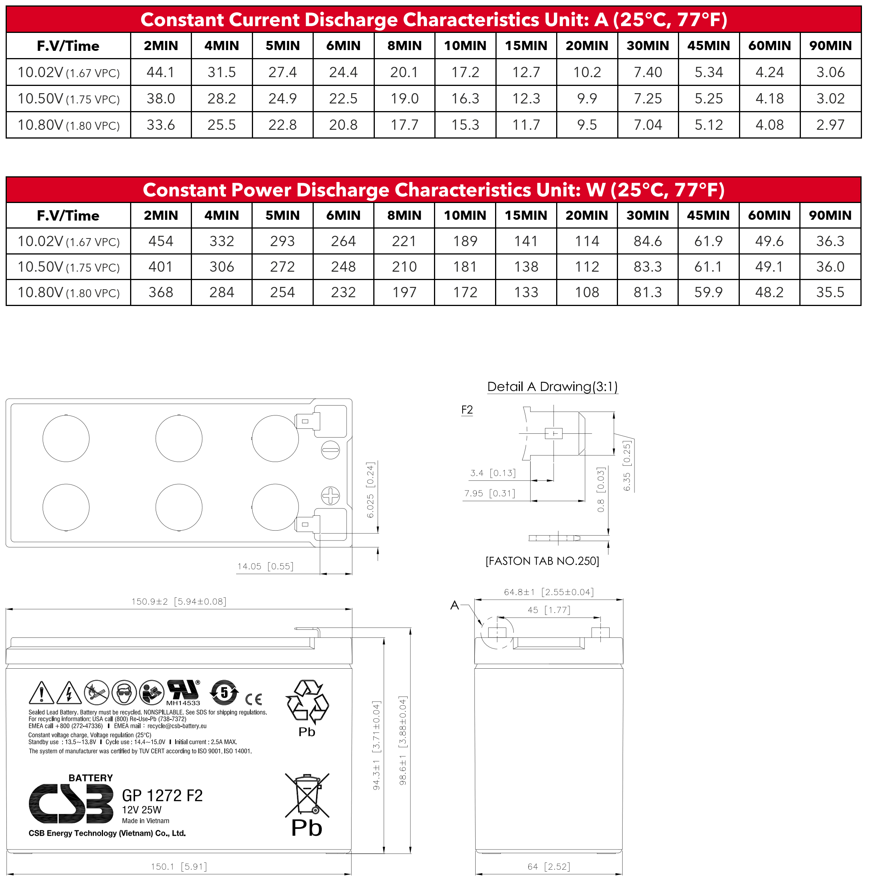

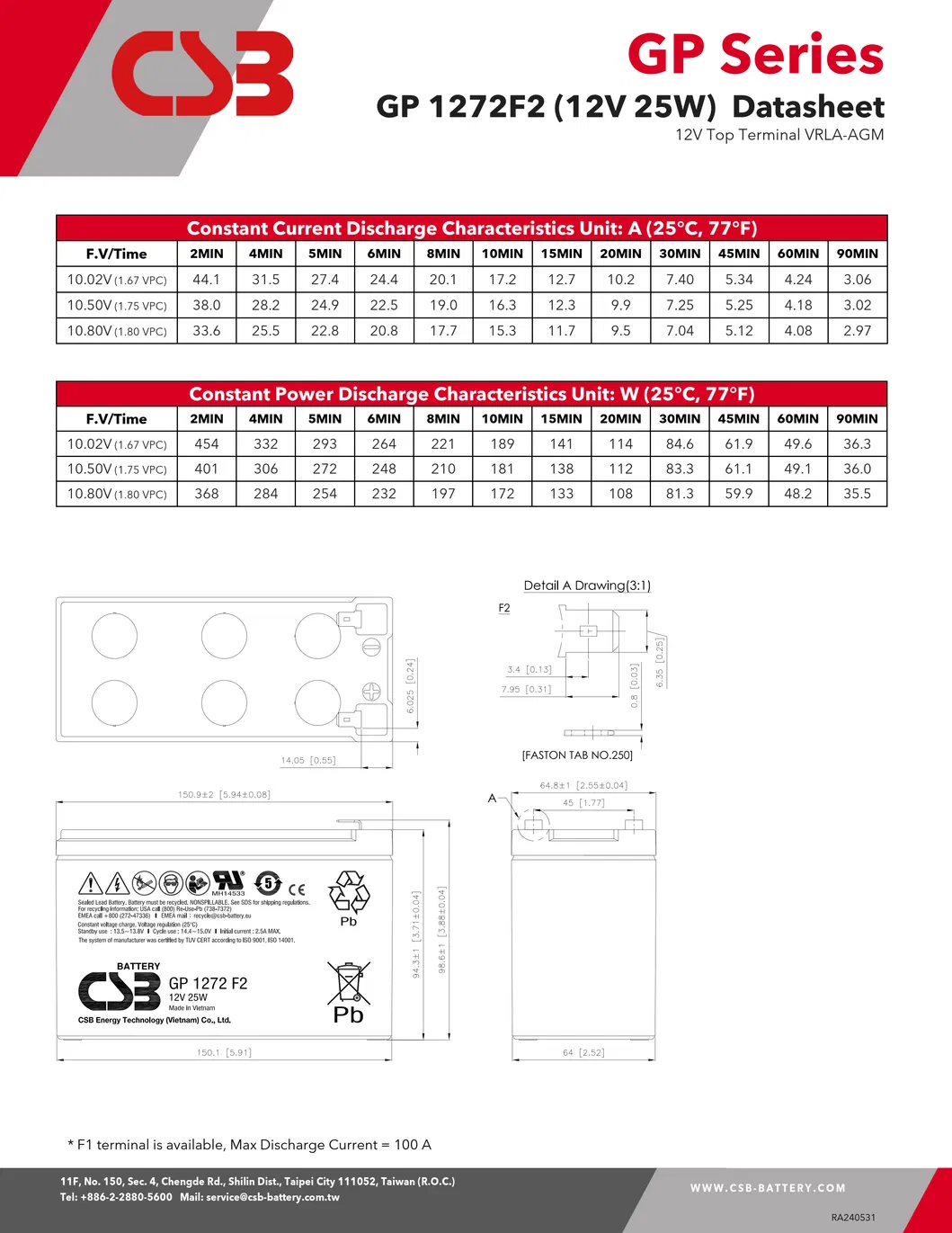

High Performance Battery Internal Structure

❓ Frequently Asked Questions

1. What are the primary applications for this battery?

The battery is primarily designed for Uninterruptible Power Supplies (UPS), high-performance power backup systems, and telecommunications infrastructure.

2. What is the expected cycle life of the CSB GP1272 F2 12V 25W?

The battery typically offers a service life of 3 to 5 years under standby use at nominal temperatures.

3. How is the quality of these batteries guaranteed?

Quality is maintained through a rigorous process involving pre-production samples before mass production and a final inspection of every unit before shipment.

4. What type of battery technology is used?

This is a VRLA (Valve Regulated Lead Acid) battery, which is maintenance-free and utilizes acid electrolyte in a spill-proof design.

5. Can this battery be used in high-discharge scenarios?

Yes, it features a medium to high discharge rate capability, with a maximum discharge current of 130A (5 sec) and a 25.8 mΩ internal resistance.

6. What are the charging requirements for this model?

The recommended maximum charging current limit is 2.5A to ensure longevity and optimal performance of the battery cells.
