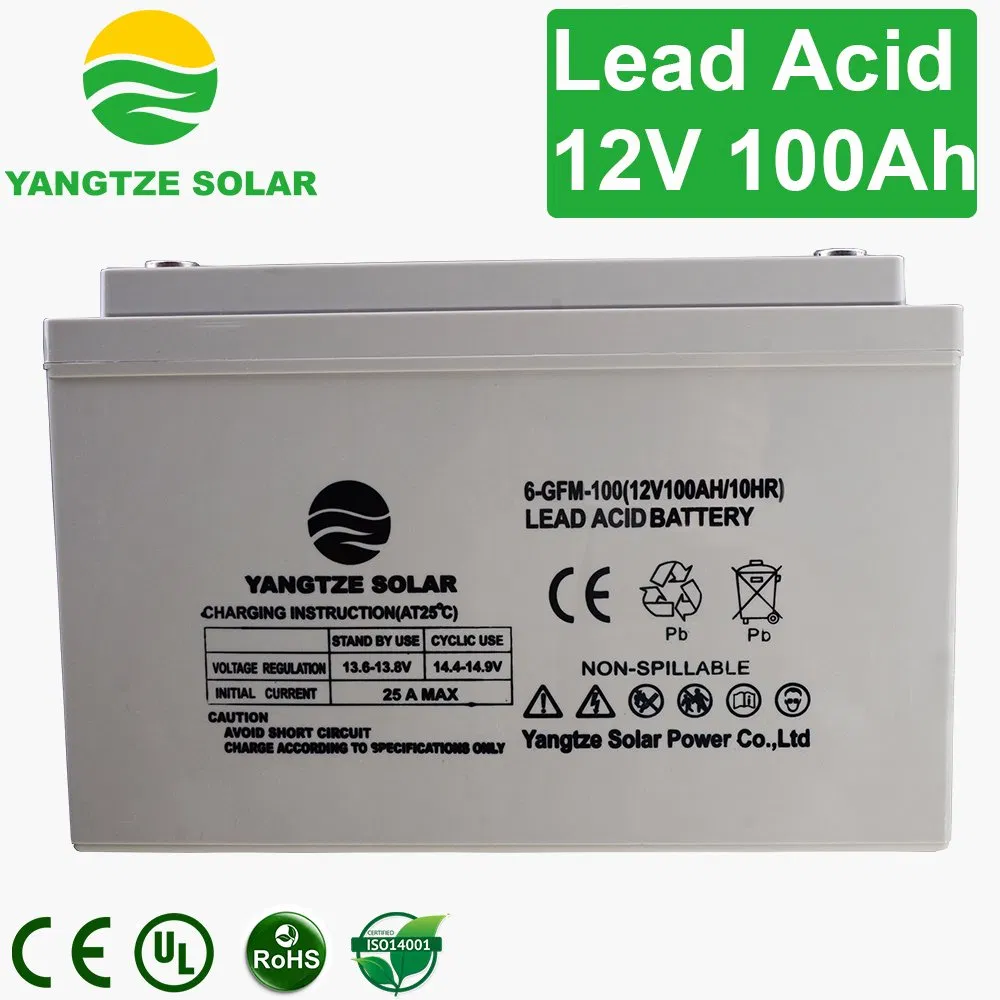

Deep Cycle 12V 100ah Maintenance Free Solar Battery Price

1 / 5

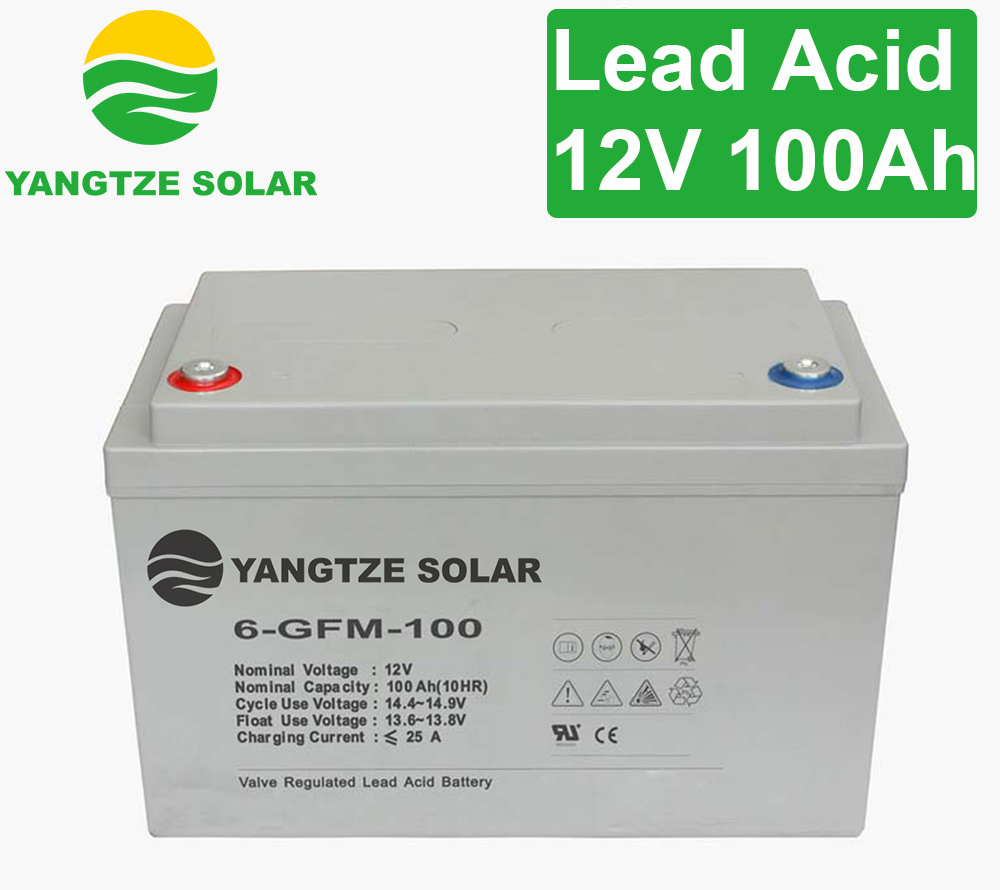

Deep Cycle 12V 100ah Maintenance Free Solar Battery Price

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

6-GFM-100

Nominal Voltage

12V

Discharge Rate

High Discharge Rate

Material

High Pure Lead

Certificate

CE/RoHS/ISO9001/ISO14001/IEC60896/IEC61427

Size

330X173X217mm

Weight

29.5kg

Warranty

3 Years

Expected Life

10 Years

Maintenance

Free

⭐

Key Features

✔ Maintenance-Free, Absorbent Glass Mat Technology

✔ Low Self Discharge

✔ Long Designed service Life, Deep Cycles

✔ Excellent Discharge Performance

✔ Environment Friendliness

✔ Wide suitability of ambient temperature range

🚀

Applications

♦ Solar and wind energy storage system

♦ EPS and UPS battery backup

♦ Signal system, emergency lighting & security

♦ Telecommunication Equipment

♦ Power source for portable devices

📊

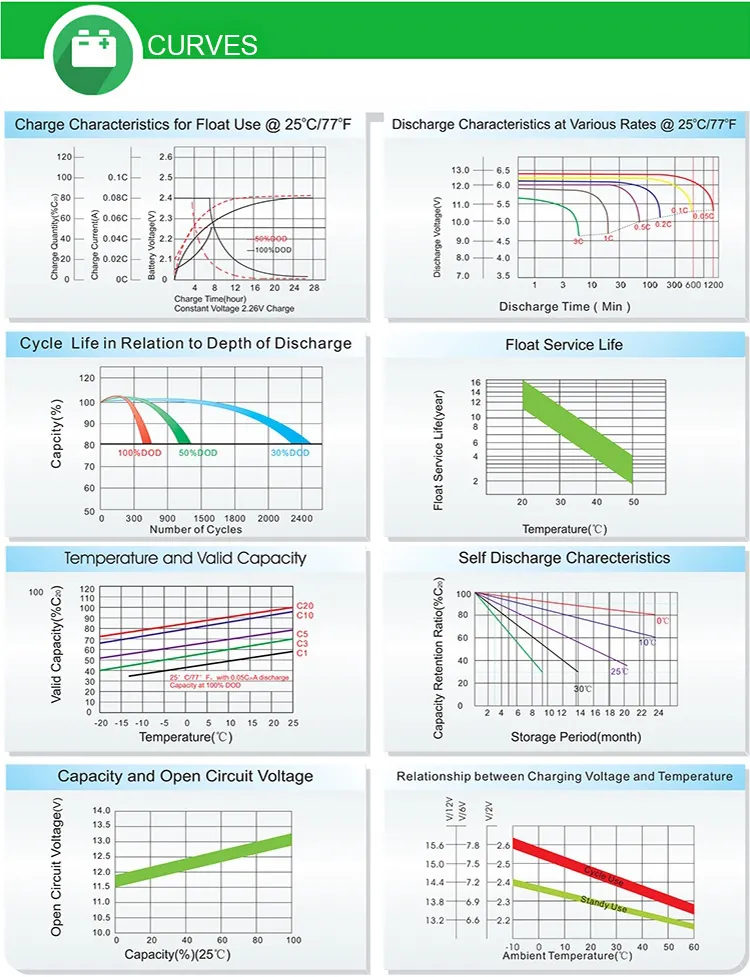

Functional Parameters

1. Functional Parameter		5. Environment Temperature
Nominal Voltage	12V	Discharge Temperature	-20~60ºC
Nominal Capacity	100Ah	Charge Temperature	0~50ºC
2. Rated Capacity at 25ºC		6. Resistance & Max Discharge
10 hour rate (0.1C, 10.8V)	100Ah	Internal Resistance	4.5mΩ
1 hour rate (0.55C, 10.5V)	55.2Ah	Max. Discharge Current	1500A (5s)
3. Temp. Capacity Effects		8. Constant Voltage Charging
40ºC (104° F)	103%	Cyclic use	14.4~14.9V
25ºC (77° F)	100%	Float use	13.6~13.8V

📸

Product Gallery

🏭

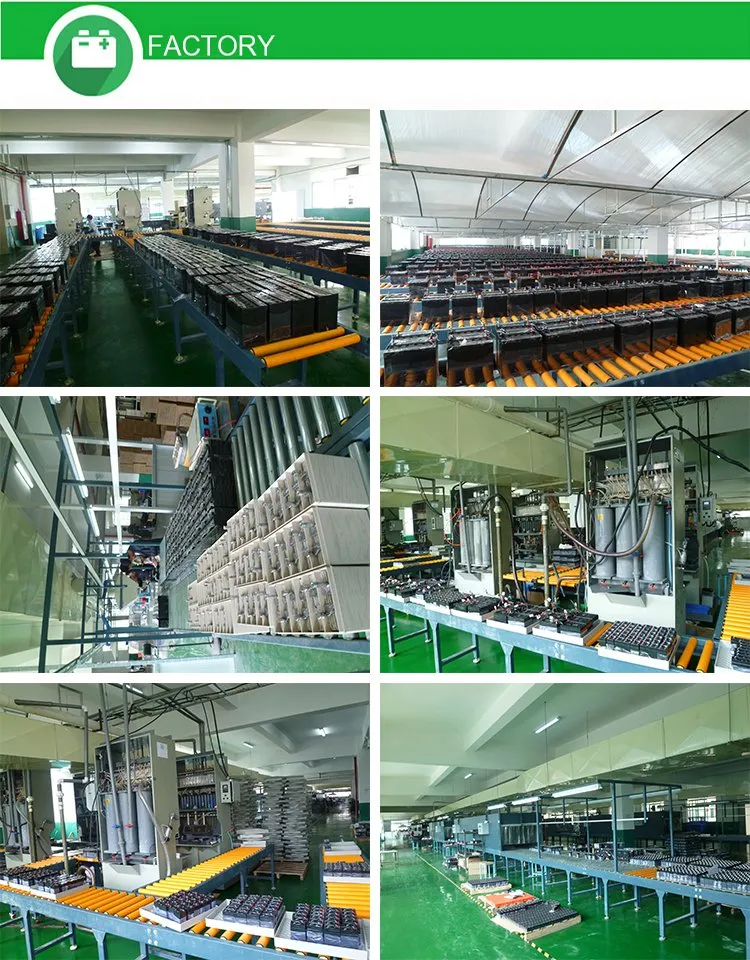

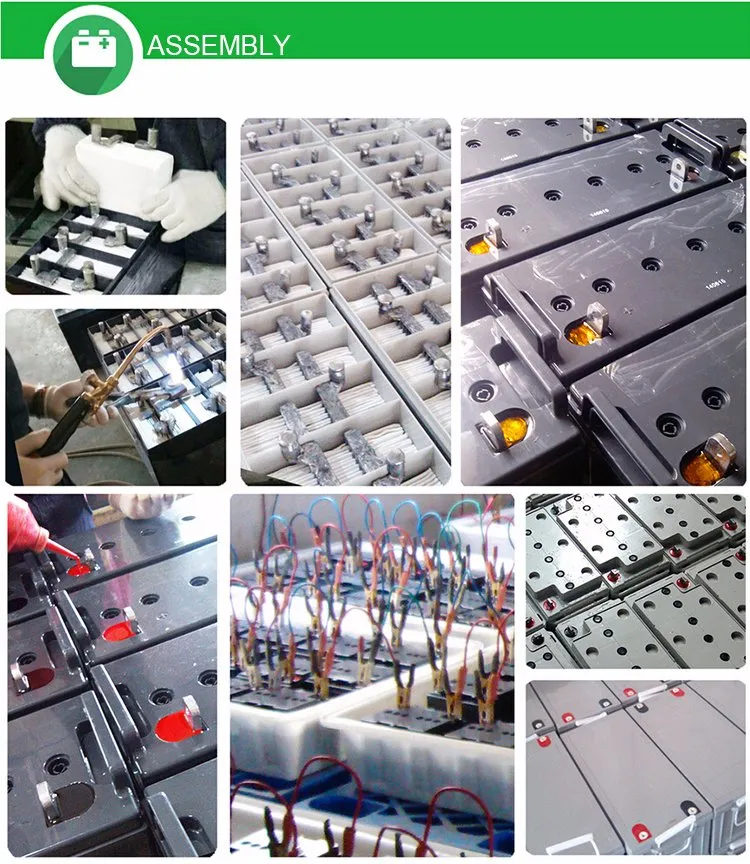

Production Capacities

♦ Factory Founded in 1996, 2 million batteries annual capacity

♦ Range includes VRLA, Gel, Deep Cycle, OPzV and OPzS batteries

♦ Products are exported to more than 150 countries

♦ Certified by CE, RoHS and International standards

❓

Frequently Asked Questions

Q1: What is the lifespan of this 12V 100Ah battery? A: The battery is designed with a long service life of up to 10 years under optimal float charging conditions.

Q2: Is this battery truly maintenance-free? A: Yes, it uses Absorbent Glass Mat (AGM) technology which is sealed and requires no water refilling.

Q3: Can I use this battery for my solar system? A: Absolutely. It is specifically designed for solar and wind energy storage systems with excellent deep cycle performance.

Q4: What is the warranty period offered? A: This model comes with a 3-year warranty covering manufacturing defects.

Q5: How does temperature affect the battery capacity? A: The capacity varies with temperature; for example, it maintains 103% capacity at 40ºC and approximately 85% at 0ºC.

Q6: What certifications does this battery hold? A: It is fully certified by CE, RoHS, ISO9001, ISO14001, and meets IEC60896/IEC61427 standards.
